A1 X
DESK TOP DEV'S CHOICE

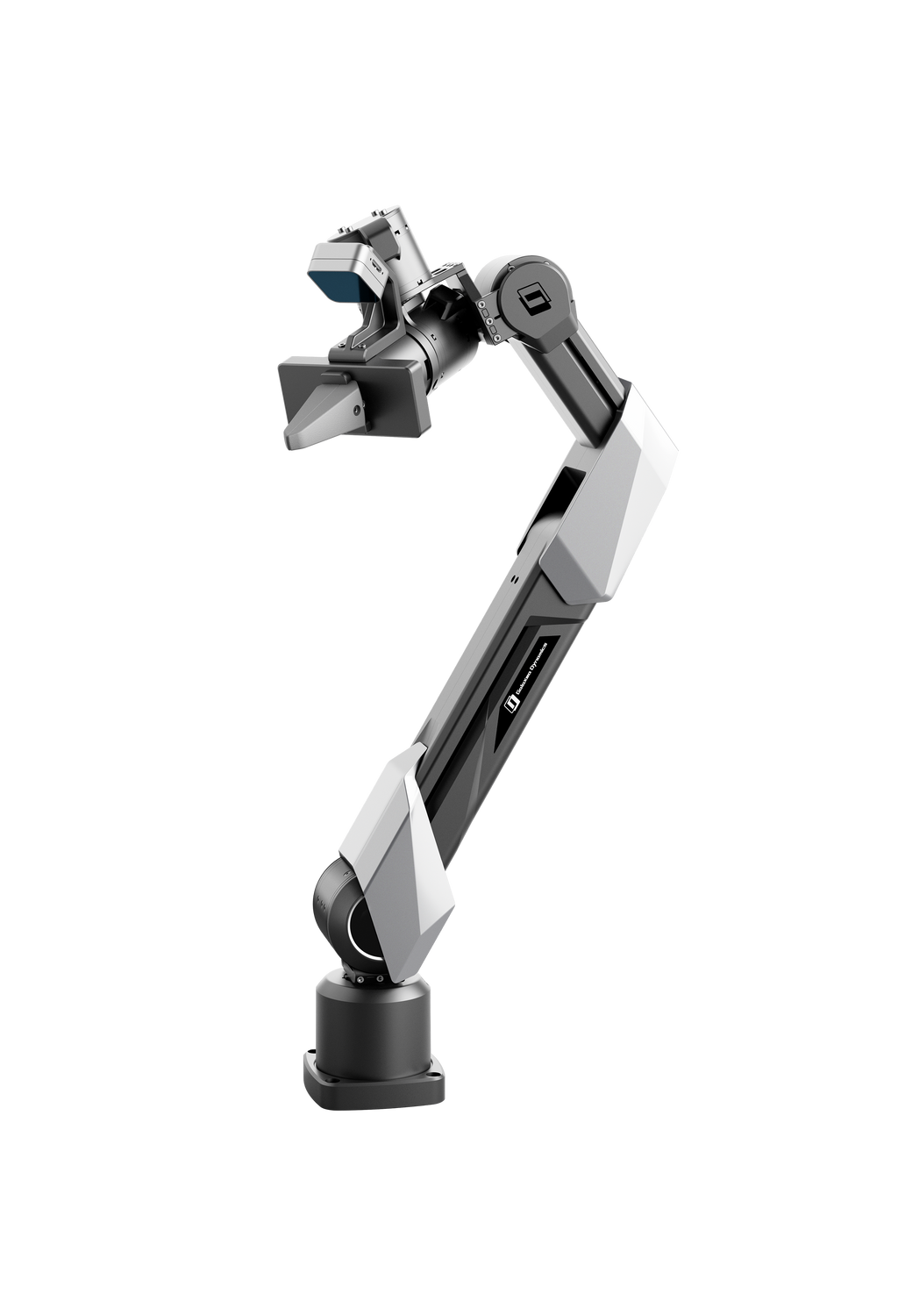

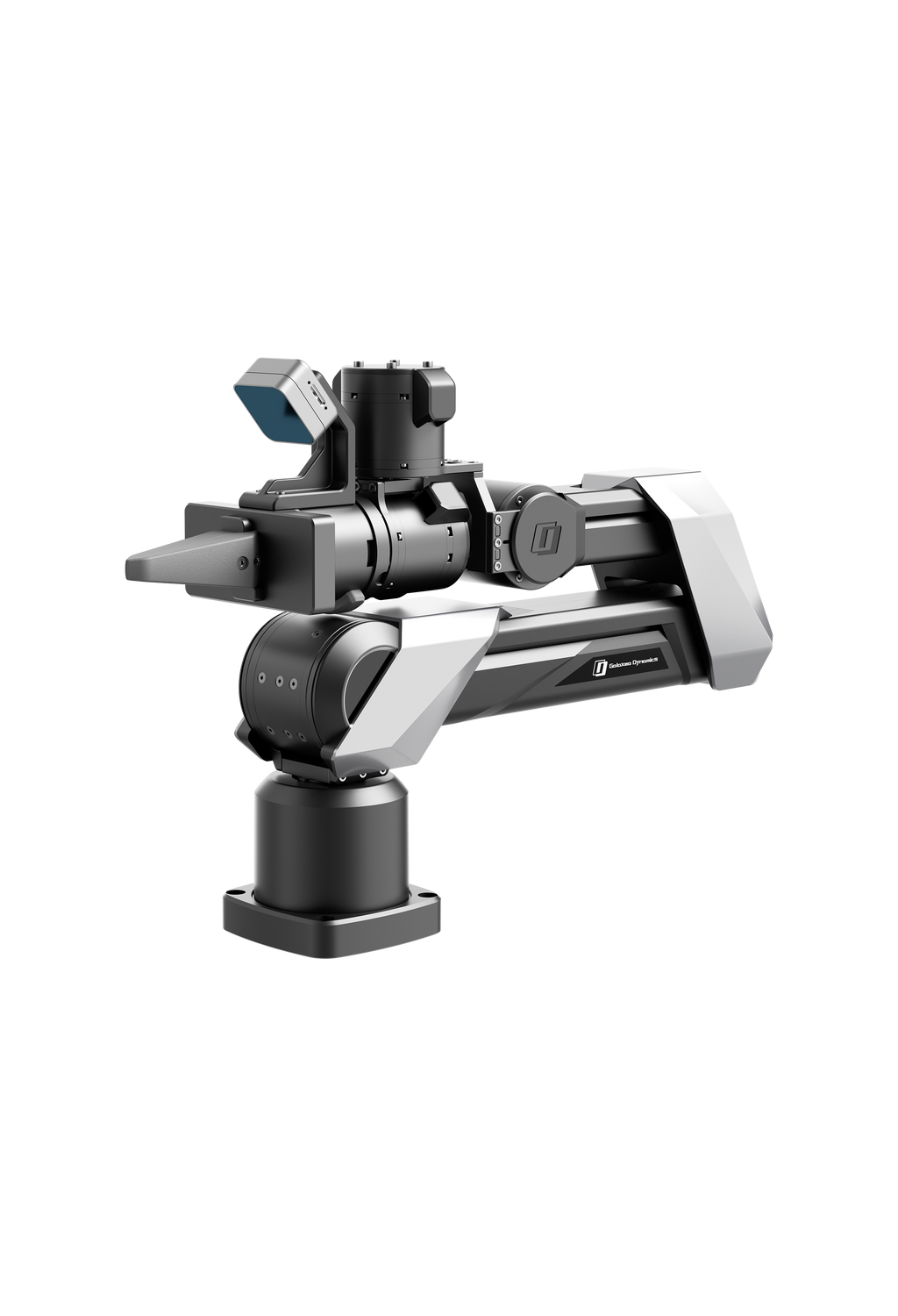

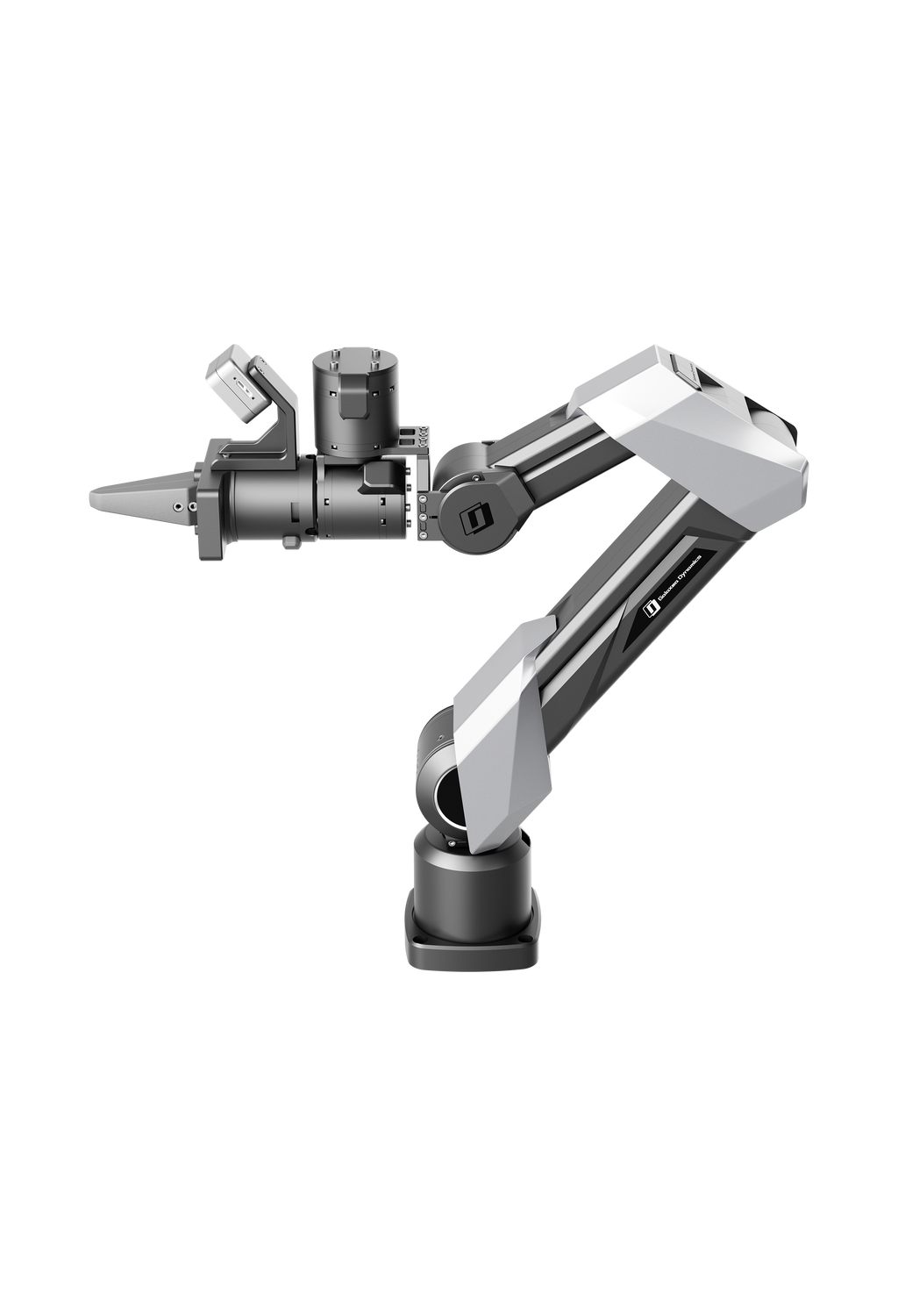

A1 X|6-DoF Ultra Light Robot Arm
$3,999.00
In stock, available to ship in 15 days.
- Gripper Throw: 0-100mm
- Rated Payload: 3 kg
- Maximum Payload: 5 kg
- Max. workspace range: 600 mm
- Weight: 4.2 kg
What's in the package
- A1X 6-DoF Robotic Arm
- Power Adapter (24V)
- Spare Wiring Harness Kit
- CAN Interface Box
- CAN Cable
- G Clamp
- G Clamp Adapter Plate
- Hex Key (Allen Wrench) Set
- M6 Screw Pack
What's not included
- G1 Gripper
- A1X-T Master Teleop device
- Wrist Camera and Accessories
Contact product@galaxea-dynamics.com for edu discounts and bulk-order pricing.
Key Dimensions (mm)
Length
600
Width
100
Height
305
Total Degrees of Freedom (DOF)
6
Weight (kg)
4.2
Single-Arm Degree of Freedom (DOF)
6
Robotic Arm Working Radius (cm)
60
Single-Arm Payload (kg) @0.6m
Rated
3
Maximum
5
Repeatability (mm)
± 0.1
Maximum End-effector Linear Speed (m/s)
5
Maximum End Acceleration (m/s²)
38
Arm Mounting Options
Side
End-effector
Force-controlled parallel gripper
End-effector Freedom (DOF)
1
Fingertip gripping range (mm)
0–100
End-Effector Length (mm)
145
Gripping force (N)
Rated
150
Peak
350
