Galaxea A1Z Lightweight Force-Controlled 6-DOF Robot Arm
$3,999.00
Delivery date: Can be shipped within 6 weeks.
- Rated Payload (Full Reach)： 3 kg
- Peak Payload (Full Reach)： 5 kg
- Arm Reach ： R：626.5 mm，H：722 mm
- Weight: 5 kg
The softest touch. The sharpest precision.

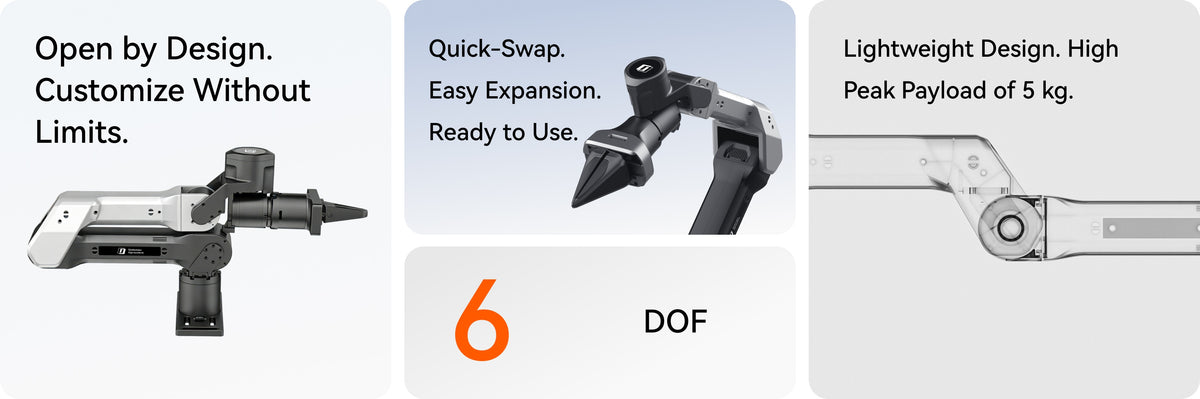

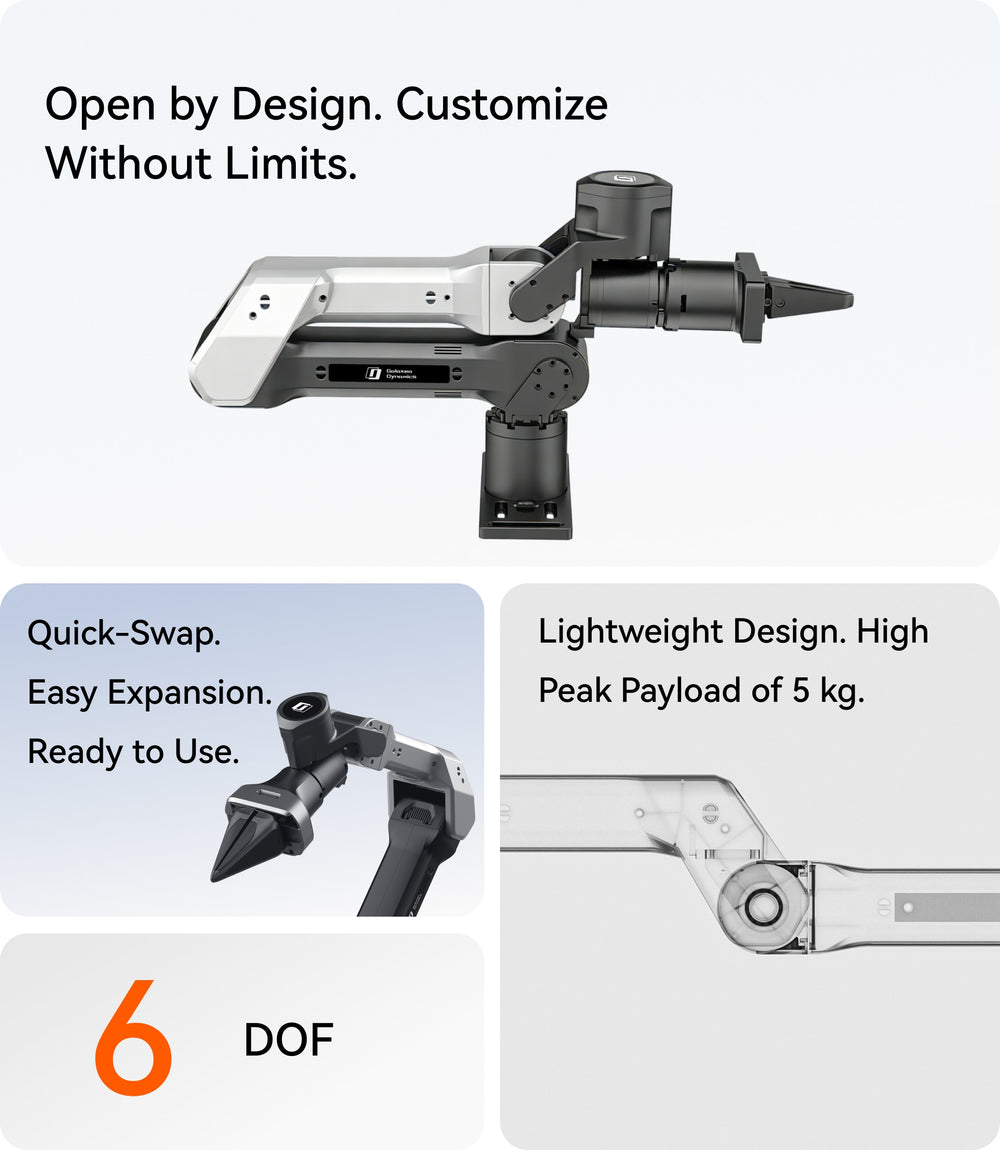

Completely open‑source. You make the rules.
Versatile end-effector support. Endless exploration on a compact desktop.
Weight: 5 kg,Tool-free setup. Place it, use it, move it.

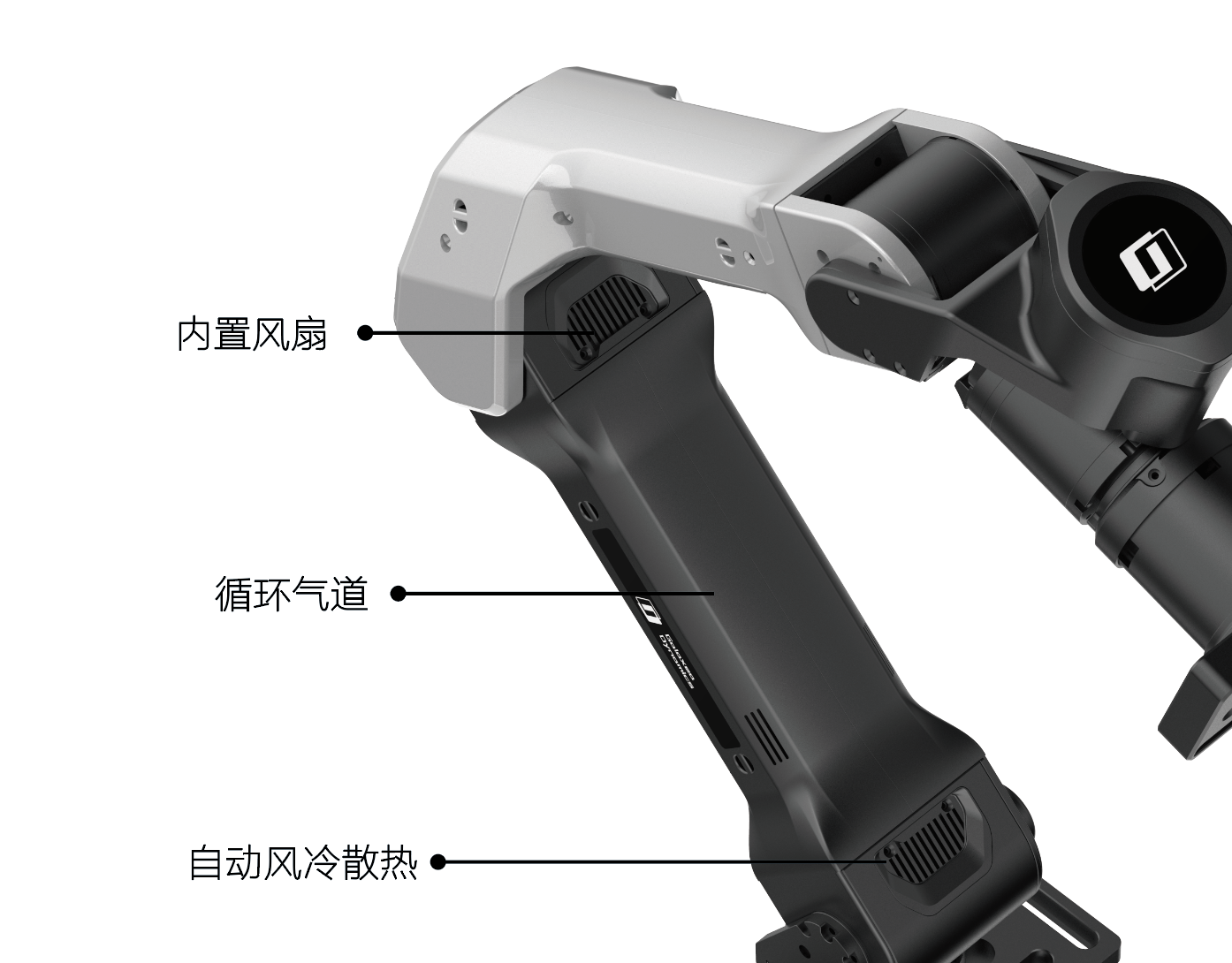

Built‑in air cooling prevents thermal throttling during extended operation, meeting the needs of all scenarios – from geek development to real‑world applications.
Build what you imagine.Two arms. One fluid motion. No limits.
What's in the package
- A1Z Robot Arm:
- Adapter Plate
- Power Adapter 24V15A (China Standard/US Standard)
- CAN Box And Its Accessories
- G-Clamp
- Product Manual
- Unboxing Manual
- Packing List
Contact product@galaxea-dynamics.com for edu discounts and bulk-order pricing.
Product Name
A1Z
Voltage
24 V
Current
15 A
Communication Protocol
CAN

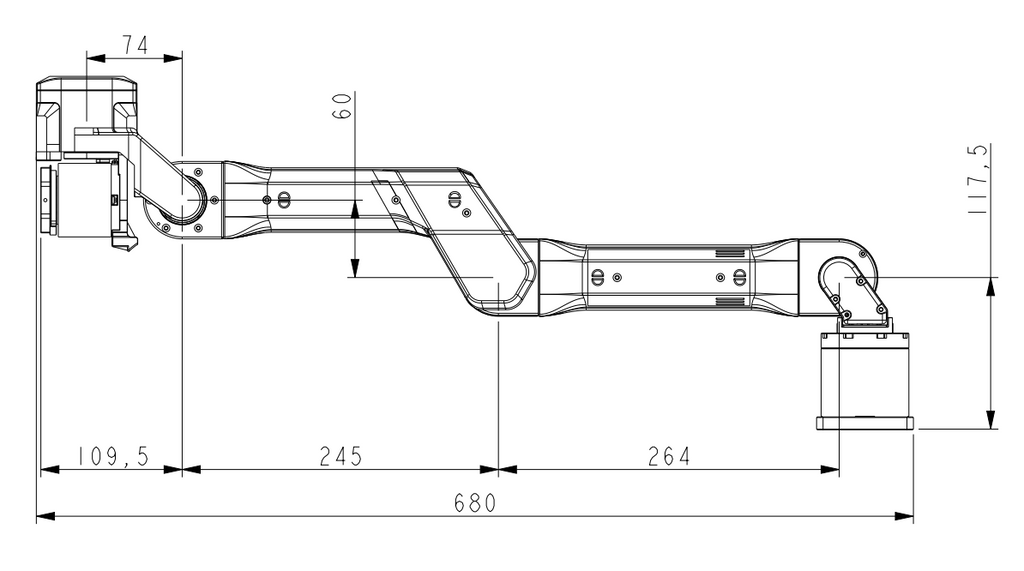

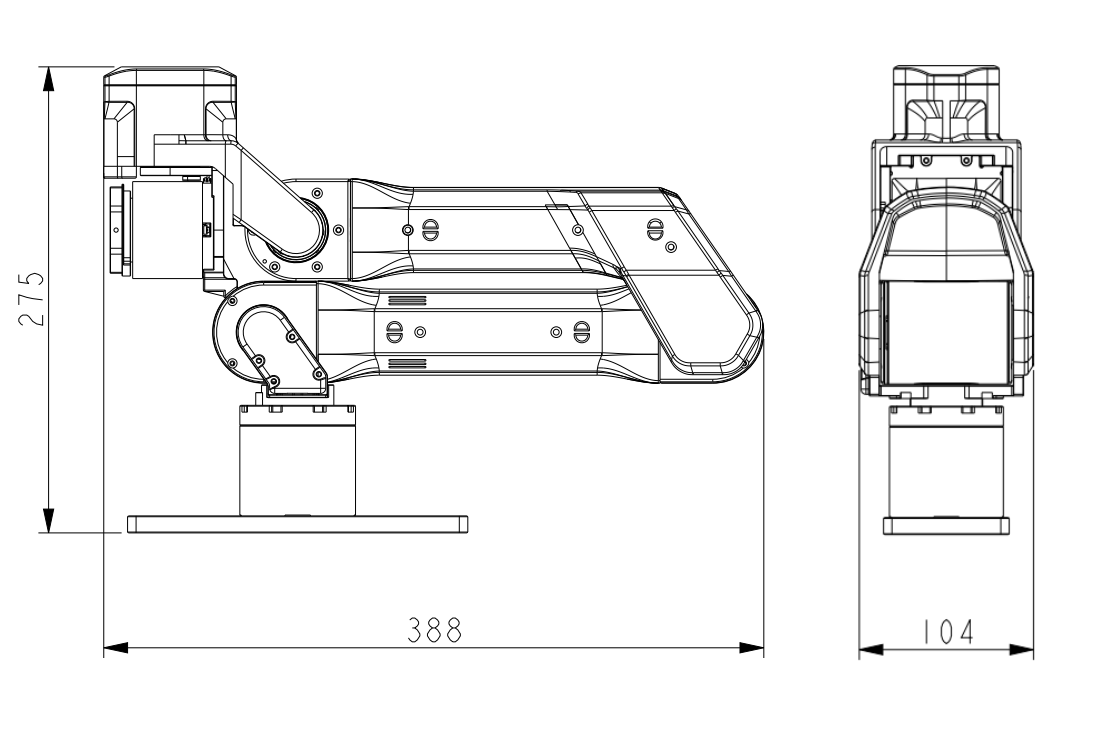

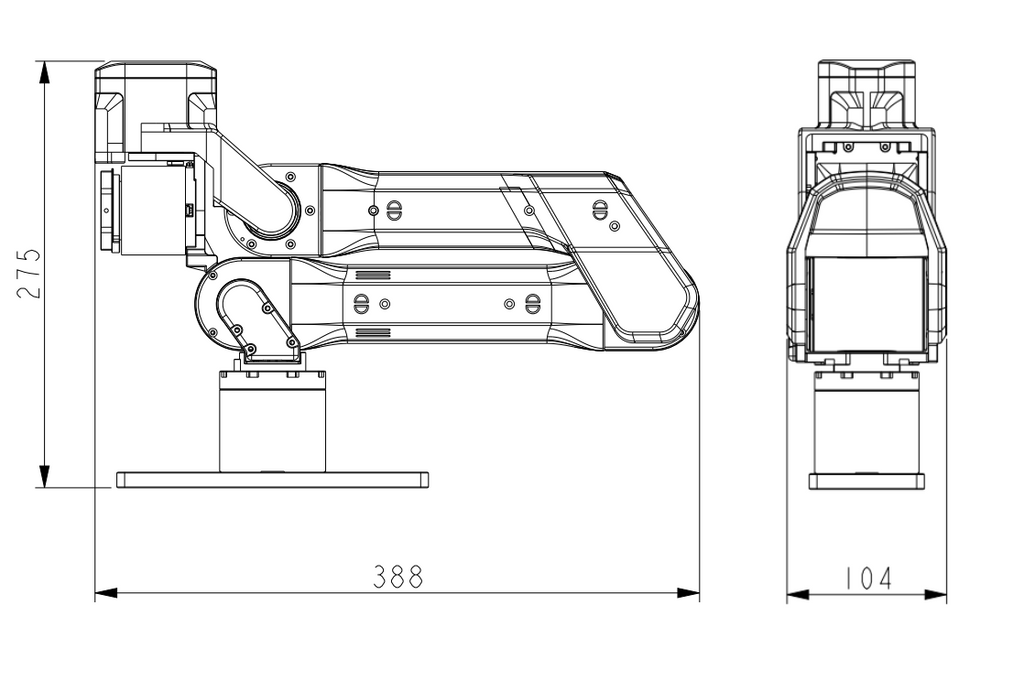

Dimensions (mm)
Deployed: 680L x 104W x 275H
Weight
5 kg
Rated Payload (Full Reach)
3 kg
Peak Payload (Full Reach)
5 kg
Arm Reach
R:90-626.5 mm，H:722 mm
Maximum End-Effector Linear Speed
7 m/s
Maximum End-Effector Acceleration
22 m/s²
Degree of Freedom
6
Repeatability
±0.1 mm
